Description
HP EliteBook 840 G5 Notebook PC Specifications Table
Available Operating Systems
Windows 10 Pro 64 – HP recommends Windows 10 Pro for business
Windows 10 Home 64
FreeDOS
Processor family
8th Generation Intel® Core™ i7 processor (i7-8650U);
Intel® Turbo Boost Technology, 4 MB cache, 2 cores); Intel® Core™ i7-7500U with Intel® HD Graphics 620 (2.7 GHz base frequency, up to 3.5 GHz
with Intel® Turbo Boost Technology, 4 MB cache, 2 cores); Intel® Core™ i5-8350U vPro™ processor with Intel® UHD Graphics 620 (1.7 GHz base
frequency, up to 3.6 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores); Intel® Core™ i5-8250U with Intel® UHD Graphics 620 (1.6 GHz
base frequency, up to 3.4 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores); Intel® Core™ i5-7300U vPro™ processor with Intel® HD
Graphics 620 (2.6 GHz base frequency, up to 3.5 GHz with Intel® Turbo Boost Technology, 3 MB cache, 2 cores); Intel® Core™ i5-7200U with Intel®
HD Graphics 620 (2.5 GHz base frequency, up to 3.1 GHz with Intel® Turbo Boost Technology, 3 MB cache, 2 cores)
Display size (diagonal) 14″
Maximum memory
32 GB DDR4-2400 SDRAM
Dual channel support.
Memory slots 2 SODIMM
Internal storage
256 GB up to 1 TB PCIe® NVMe™ M.2 SSD
360 GB up to 512 GB PCIe® NVMe™ M.2 SSD
up to 512 GB M.2 SATA FIPS 140-2 SSD
128 GB up to 256 GB M.2 SATA SSD
Display
14″ diagonal FHD IPS anti-glare LED-backlit, 220 cd/m², 67% sRGB (1920 x 1080); 14″ diagonal FHD IPS LED-backlit touch screen with Corning®
Gorilla® Glass 3, 220 cd/m², 67% sRGB (1920 x 1080); HP Sure View 14″ diagonal FHD IPS LED-backlit touch screen with Corning® Gorilla® Glass 3,
700 cd/m², 100% sRGB (1920 x 1080); 14″ diagonal 4K IPS anti-glare LED-backlit, 400 cd/m², 100% sRGB (3840 x 2160); HP Sure View 14″
diagonal FHD IPS anti-glare LED-backlit, 700 cd/m², 100% sRGB (1920 x 1080); 14″ diagonal FHD IPS anti-glare LED-backlit, 400 cd/m², 100%
sRGB (1920 x 1080)
Available Graphics
Integrated: Intel® UHD Graphics 620; Intel® HD Graphics 620
Discrete: AMD Radeon™ RX 540 (2 GB GDDR5 dedicated)
Audio Bang & Olufsen, dual stereo speakers, integrated multi array microphone
Wireless technologies
Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2×2) Wi-Fi® and Bluetooth® 4.2 Combo, vPro™; Intel® Dual Band Wireless-AC 8265
802.11a/b/g/n/ac (2×2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™; Realtek 802.11ac (2×2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™; HP
lt4132 LTE/HSPA+ Mobile Broadband Module; Intel® XMM™ 7360 LTE-Advanced
(Compatible with Miracast-certified devices.)
Ports and Connectors
1 Thunderbolt™ (USB Type-C™ connector); 2 USB 3.1 Gen 1 (1 charging); 1 HDMI 1.4b; 1 RJ-45; 1 docking connector; 1 headphone/microphone
combo; 1 AC power
(HDMI cable sold separately.)
Input devices

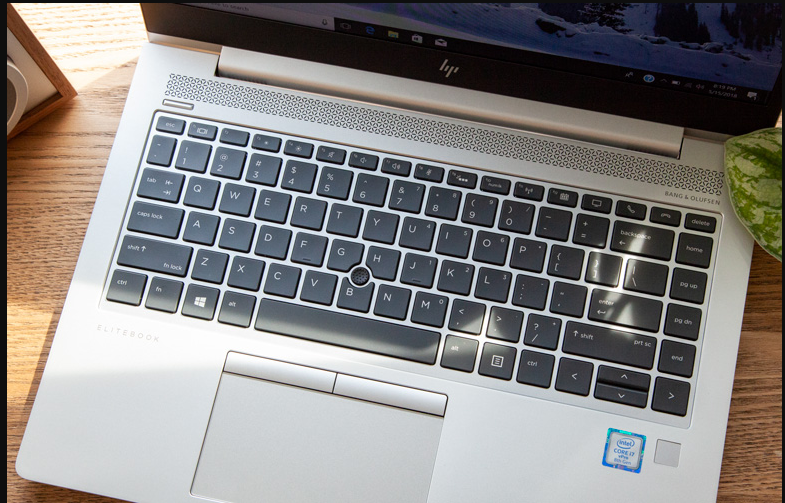

HP Premium Collaboration Keyboard spill resistant with drain, optional backlit; Clickpad with multi-touch gesture support, taps enabled as default
Ambient light sensor
Communications HP Module with NXP NFC Controller NPC300 I2C NCI; Intel® I219-LM GbE, vPro™; Intel® I219-V GbE, non-vPro™
Camera HD camera; HD IR webcam
Available Software
HP 3D DriveGuard; HP Connection Optimizer; HP Hotkey Support; HP JumpStart; HP LAN Protection; HP Noise Cancellation Software; HP Recovery
Manager; HP Support Assistant; HP Velocity; Native Miracast support; HP Client Security Gen4; Buy Office (Sold separately)
Security management
Absolute persistence module; HP BIOSphere Gen4; HP Device Access Manager; HP DriveLock and Automatic DriveLock; HP Fingerprint Sensor; HP
Password Manager; HP Secure Erase; HP Security Manager; Power-on authentication; Preboot authentication; TPM 2.0 embedded security chip
shipped with Windows 10 (Common Criteria EAL4+ Certified); HP Sure Click; HP SureStart Gen4; Windows Defender
Management features
HP Driver Packs; HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Client Catalog; HP Manageability Integration Kit Gen2; Ivanti
Management Suite
Power
HP Smart 65 W External AC power adapter; HP Smart 65 W EM External AC power adapter; HP Smart 65 W USB Type-C™ adapter; HP Smart 45 W
External AC power adapter; HP Smart 45 W USB Type-C™ adapter
Battery type HP Long Life 3-cell, 50 Wh Li-ion
Battery life Up to 14 hours
Dimensions 32.6 x 23.4 x 1.79 cm
Weight Starting at 1.48 kg (non-touch); Starting at 1.61 kg (touch) (Weight will vary by configuration.)
Energy efficiency compliance ENERGY STAR® certified and EPEAT® Gold registered
